Firewad AAP01 Bolt-Action Welrod Kit (3D Files Only)
Firewad AAP01 Bolt-Action Welrod Kit (3D Files Only)
Couldn't load pickup availability
This is my kit to convert your AAP01 to bolt-action! This kit is also available on my Cults3D
Here's a demo video:
https://youtube.com/shorts/jkWlmzdS3G4?si=qFvgnFb_NJDMl_l_
The Welrod was an unusual British special operations pistol devised at the Inter-Services Research Bureau. Bolt action and featuring an integral suppressor, it is simple, reliable and extremely quiet. It was used by SOE, OSS, irregulars and resistance forces.

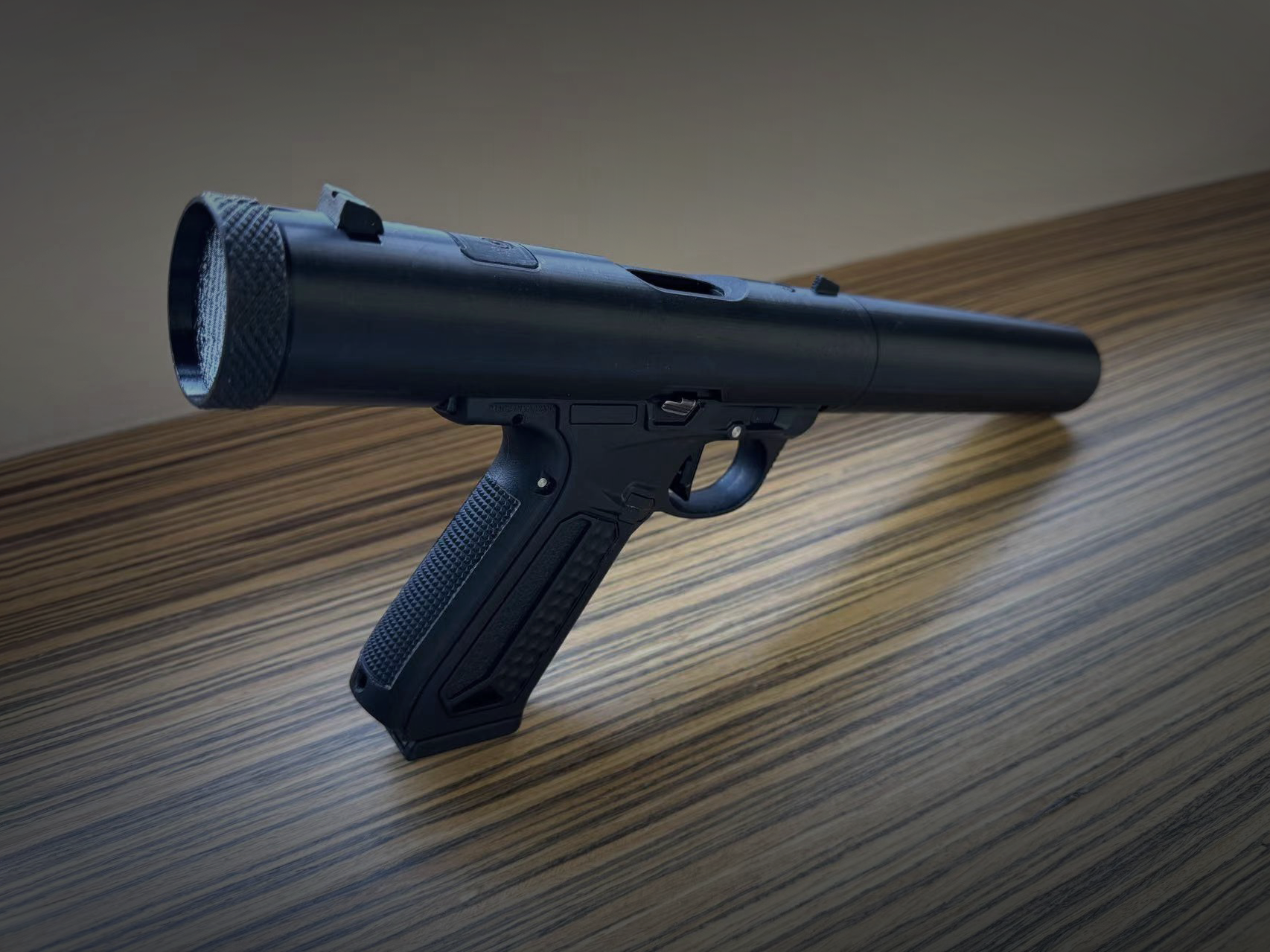

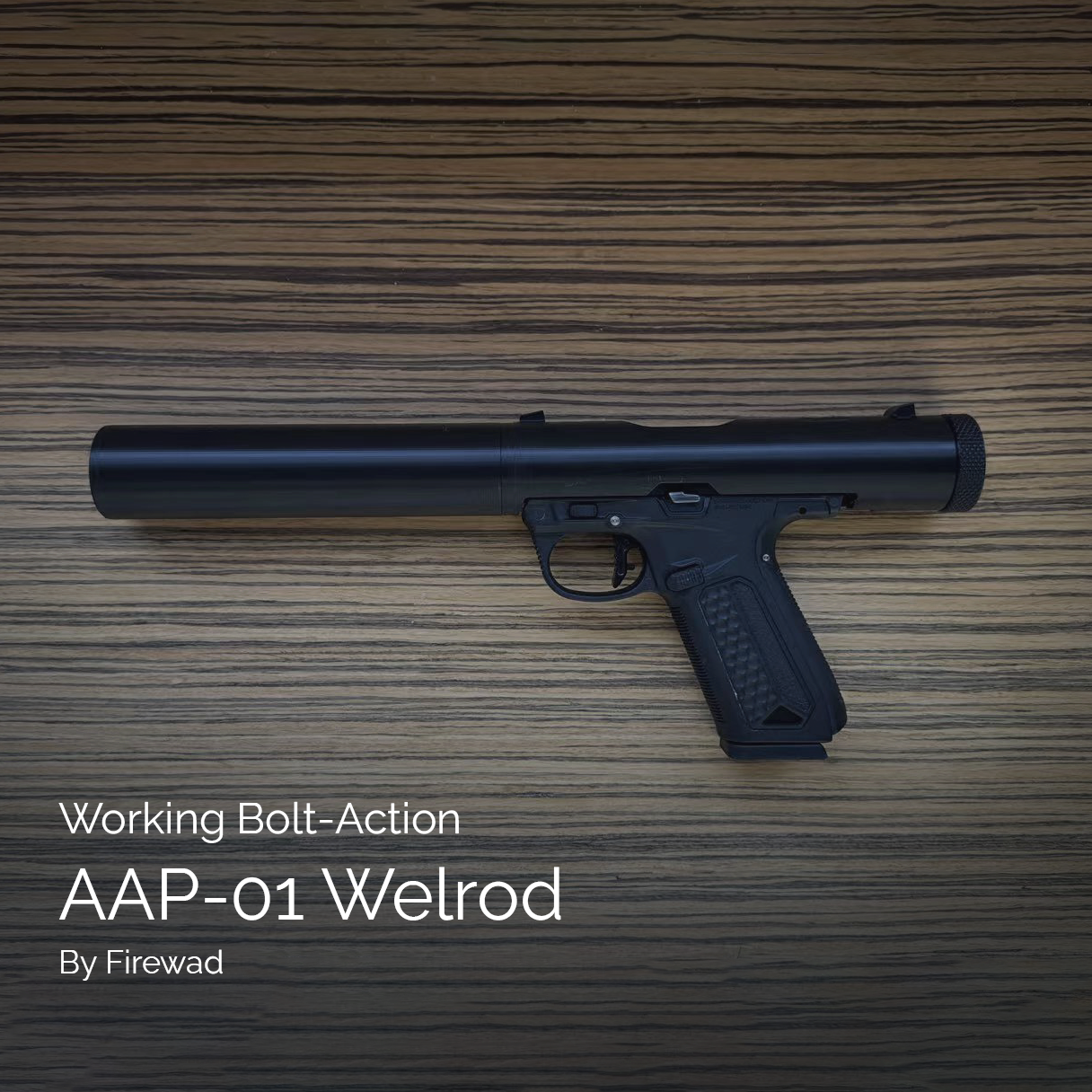

With this kit, you can quickly and easily convert your semi/full-auto AAP-01 into a quiet bolt-action Welrod. All you'll need are the printed parts and a single M5*8 bolt.
Main Feature:
- Functioning Bolt-Action
- Quieter Shooting
- Adjustable Iron Sight
- Fits tracer units up to 35mm OD x 85mm in Supressor
- Cheap and Easy for Beginners to Build (only requires 1 bolt screw)
What You Need:
- 1x M5*8 Bolt/Screw
- PETG Filament
- Grease/Lubricant (I like using Super Lube Synthetic Grease Grade 2)
Assembly instructions are available on my Discord server:
https://discord.gg/GPGP3WCmbY
Have any questions before downloading? Join my Discord server and ask me! I'm happy to answer any questions and offer technical support:
FAQs:
Q: OMG FIREWAD, BOLT-ACTION AAP-01!?! HOW DOES THIS POSSIBLY WORK?!?"
A: Basically after shooting, the bolt cycles back as normal but is restricted from returning to battery, this stops the AAP01 from firing again. Cocking the charging handle and twisting to the lock position returns the bolt to battery allowing you to fire the next shot.
Q: Can I return the AAP-01 Back to semi/full-auto?
A: Yes, it's easy to change between semi/full-auto and bolt-action.
Q: What parts is the kit compatible with?
A: It will work with all internal upgrades, except Bolt upgrade. I can only recommend the stock bolt.
Q: Is it compatible with the AAP-01C?
A: No
SAFETY DISCLAIMER: Always wear proper face protection when playing airsoft, especially with 3D printed parts! 3D printed parts are more likely to break, so please be careful!
For personal use only. This file is under the Private Use License
3D printing settings
-
0.16mm Layer Height recommended for all parts
-

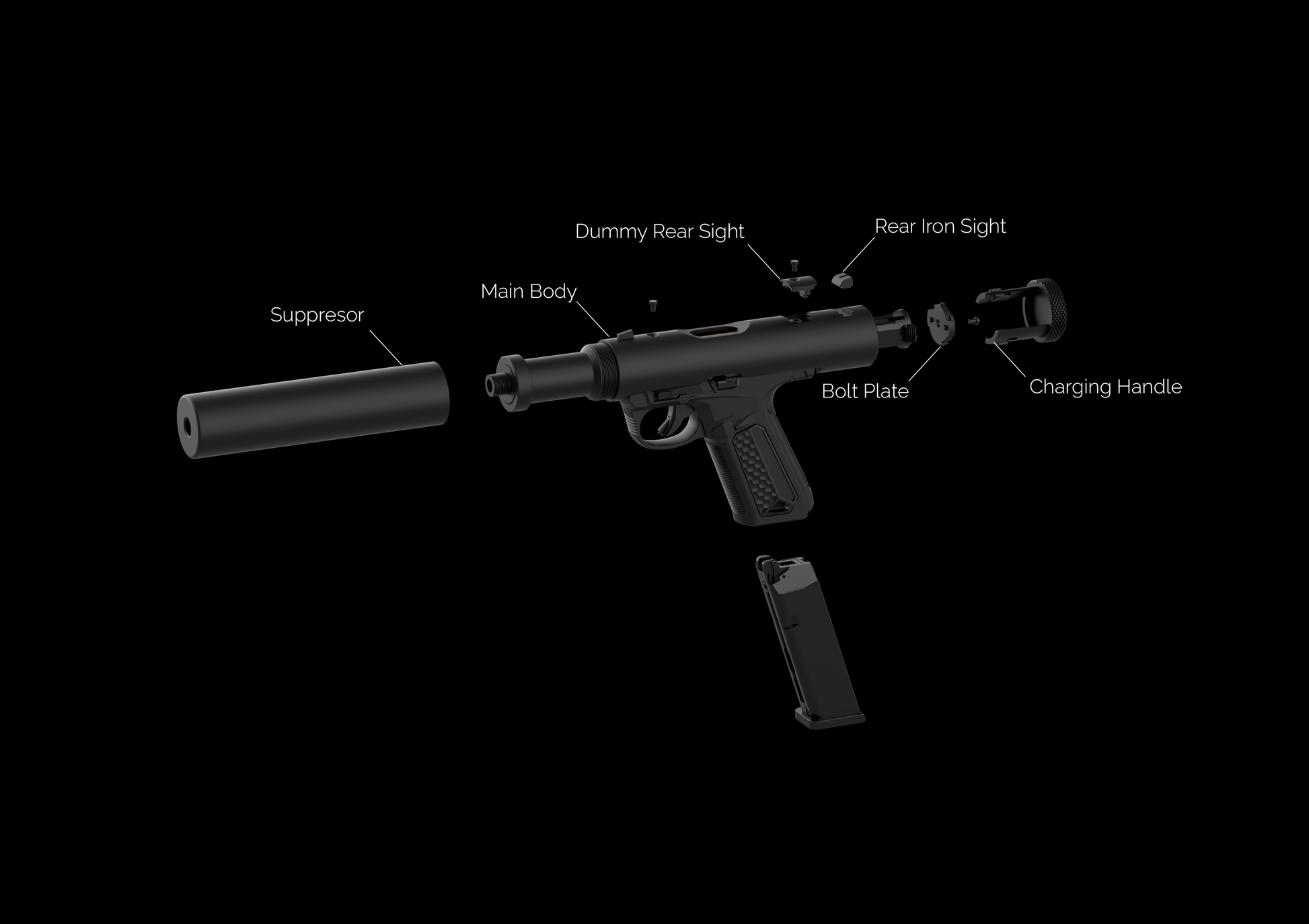

The Charging Handle, Bolt Plate and Dummy Rear Sight must be printed in PETG or ABS with 100% infill
-
All other parts are not so critical and can be printed in PLA+, PETG or ABS with 2 wall loops and 15% infill
