Firewad AAP01 AK Lower Airsoft (3D Files Only)

You can get the files here or on my Cults3D page

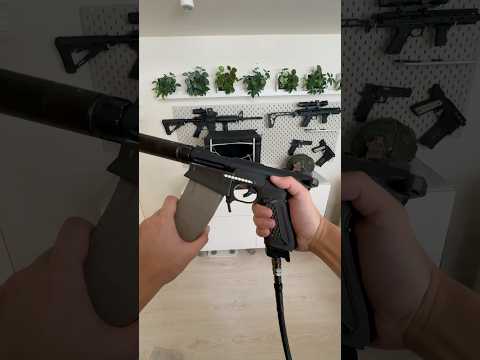

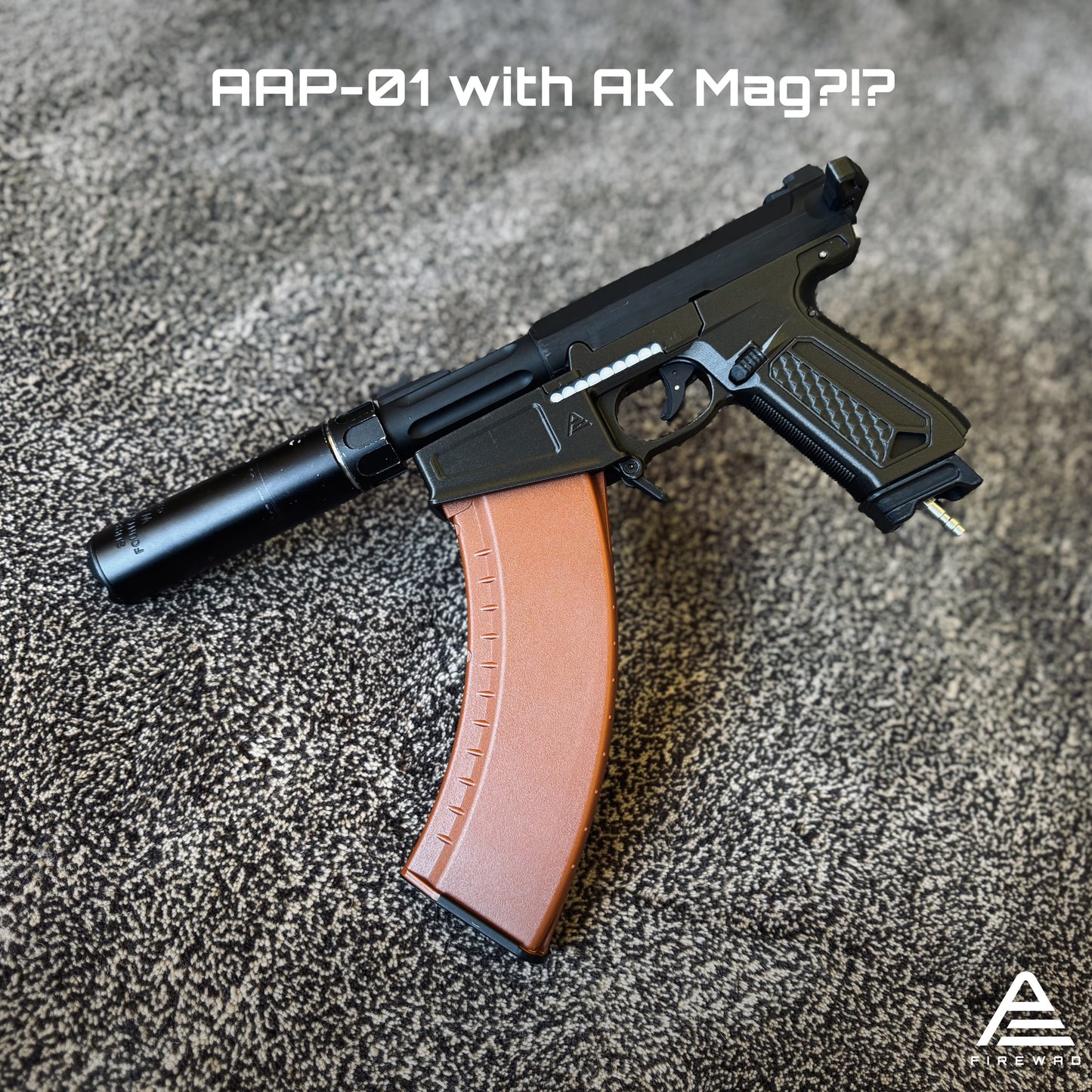

This is a very unique AK Lower for the AAP-01. This kit converts your AAP-01 into an AK and lets you use AEG AK magazine. Check out this video showing it work! https://youtube.com/shorts/H2ByA04b0fA?si=LzKaT8YAtT3fIh0U

An HPA setup is not required; this kit also works with regular green gas magazines! This kit does not include the carbine kit; you can find it here: https://cults3d.com/:2282956

But how does the magazine feed from the front?

A tube transports the BBs from the AK magazine to the chamber!

Throughout this project, the #1 priority and biggest challenge was to make it feed as smoothly and consistently as possible. After months of prototyping different designs, I achieved my goal. This HPA Lower uses a plastic PTFE tube that smoothly transports the BBs from the magazine to the chamber, letting you fire full auto without issue. If you can't find this tube, you can 3d print it instead, which also works well (I highly recommend getting the PTFE tube for ultimate smoothness). You can find more information and assembly instructions in my Discord server: https://discord.gg/B5KFRRkb8R

Key Features:
- Feeds from CYMA AK magazines (other brands can work, but it's untested)
- Cool AK reload
- Large window lets you see the BBs feed
- Ultra smooth feeding with PTFE tube
- BB latch retains BBs in place when the magazine is removed
- Easily remove BBs inside by pressing on the BB latch

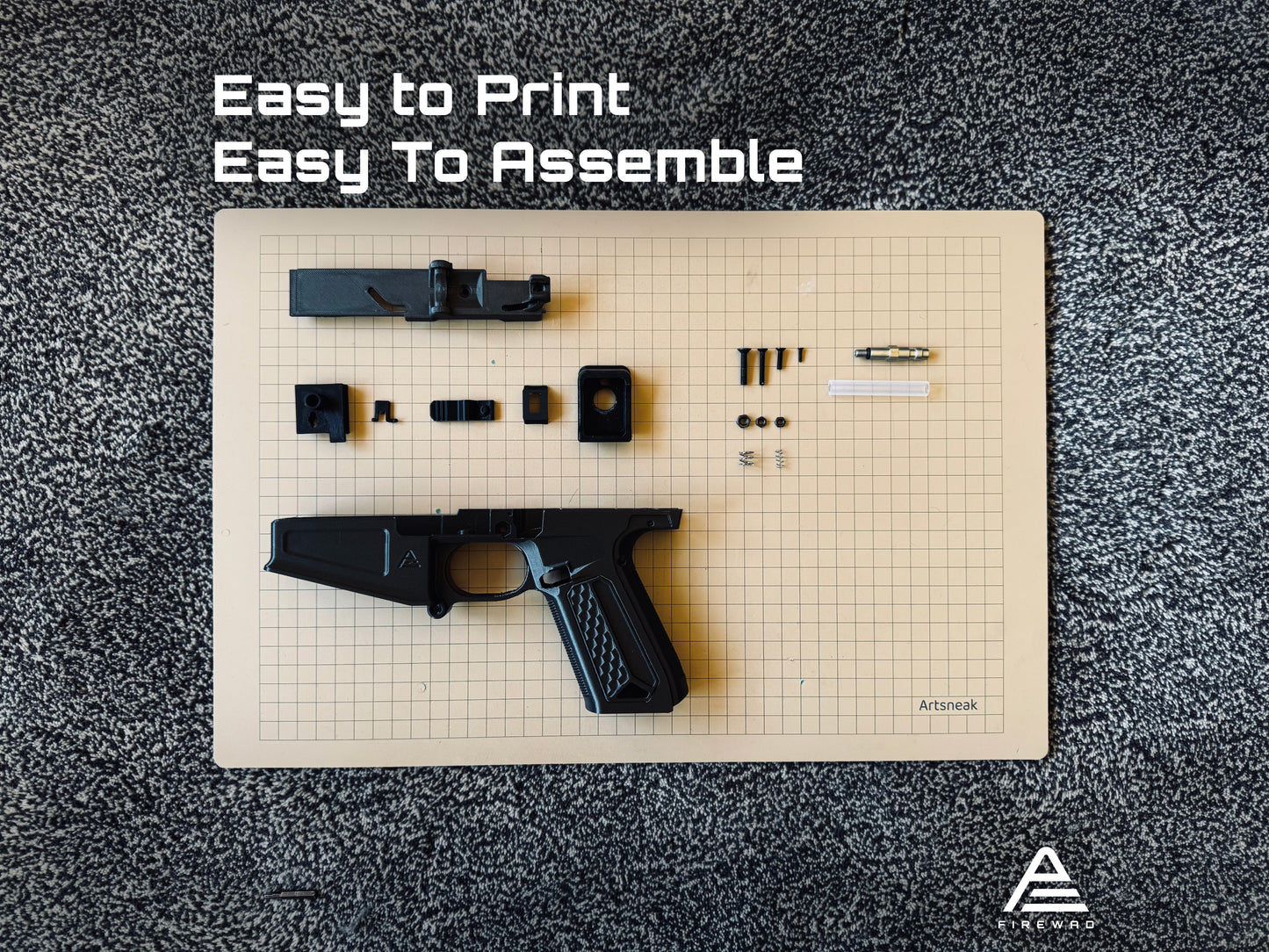

- Easy to assemble and disassemble for maintenance and cleaning (only 1 screw!)
- Works with green gas or HPA (HPA is recommended)

Things you will need:

I sell a hardware pack that includes all of the hardware: https://firewad.com/products/aap-01-mp5-lower-hardware-pack

You can also source the hardware yourself. Most stuff can be found in your local hardware store:

Required:
1 x half an magazine release Spring for AEG M4 (8 x 8 x 0.8mm)
1 x pen spring (4 x 10 x 0.4mm)
1 x countersunk screw M3x12
1 x countersunk screw M3x20
2 x M3 nut
1 x countersunk screw M4x20
1 x M4 nut
1 x countersunk screw M2x8

Recommended (but not Required):
1 x HPA fitting for we/kj gas magazine ( Converts your green gas magazine to HPA, I used this one: https://www.aliexpress.com/i/1005006750796503.html , but airsoft shops do sell this)
1 x PTFE tube 8mm OD 6mm ID x52mm
4 x Pan Head Screw M4 x 6 for panel grips

FAQS:

Q: I don't have an HPA system. Can I use green gas magazines?
A: Yes! You can still use green gas magazines!

Q: Will it fit on my printer?
A: The parts can fit on a printer as small as the A1 mini (180mm x 180mm x 180mm)

Q: Will all the BBs fall out when I take out the magazine?
A: No, there is a BB latch that stops the BBs from falling out. There is also a little button inside the magwell that releases all the BBs.

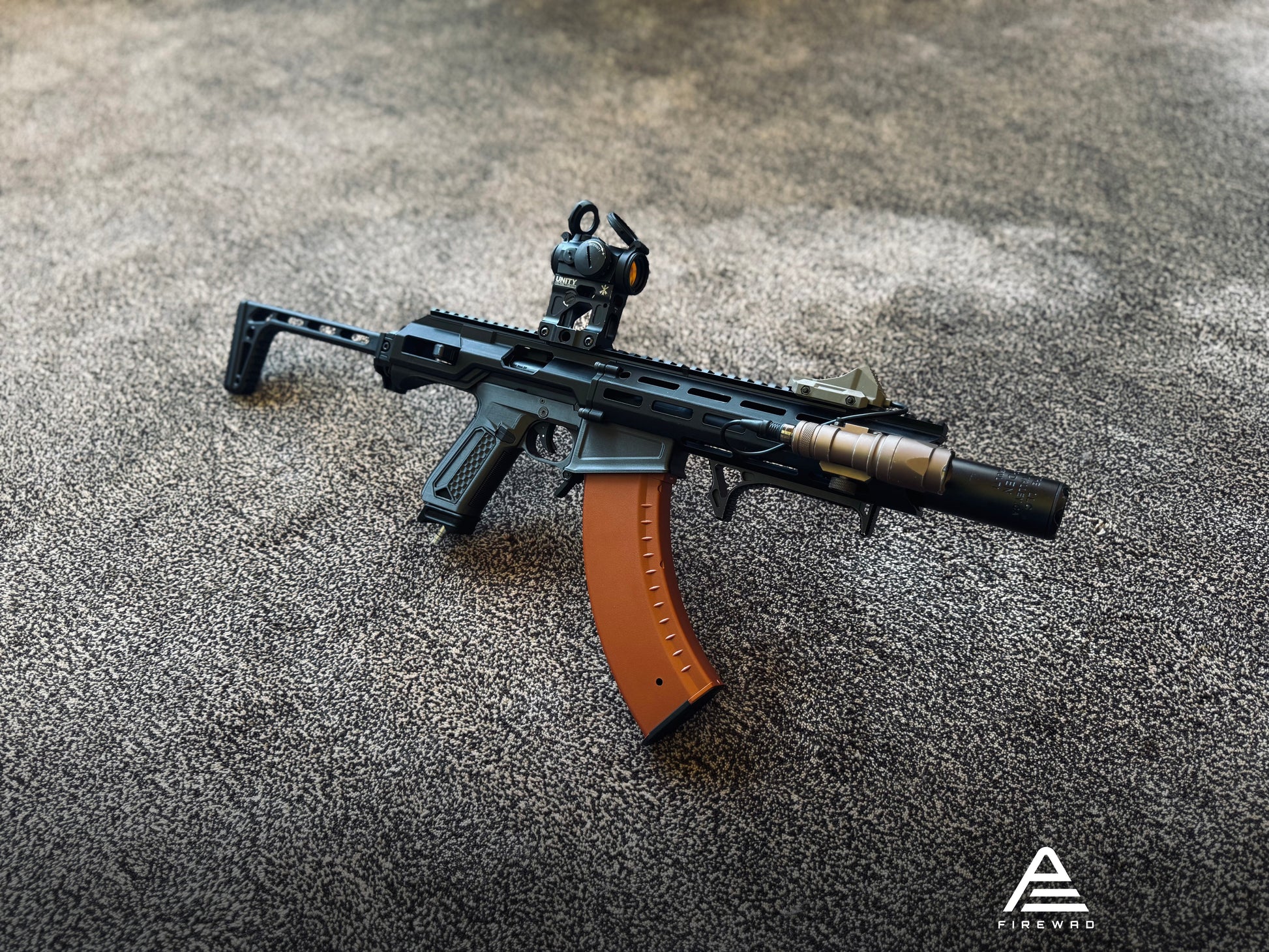

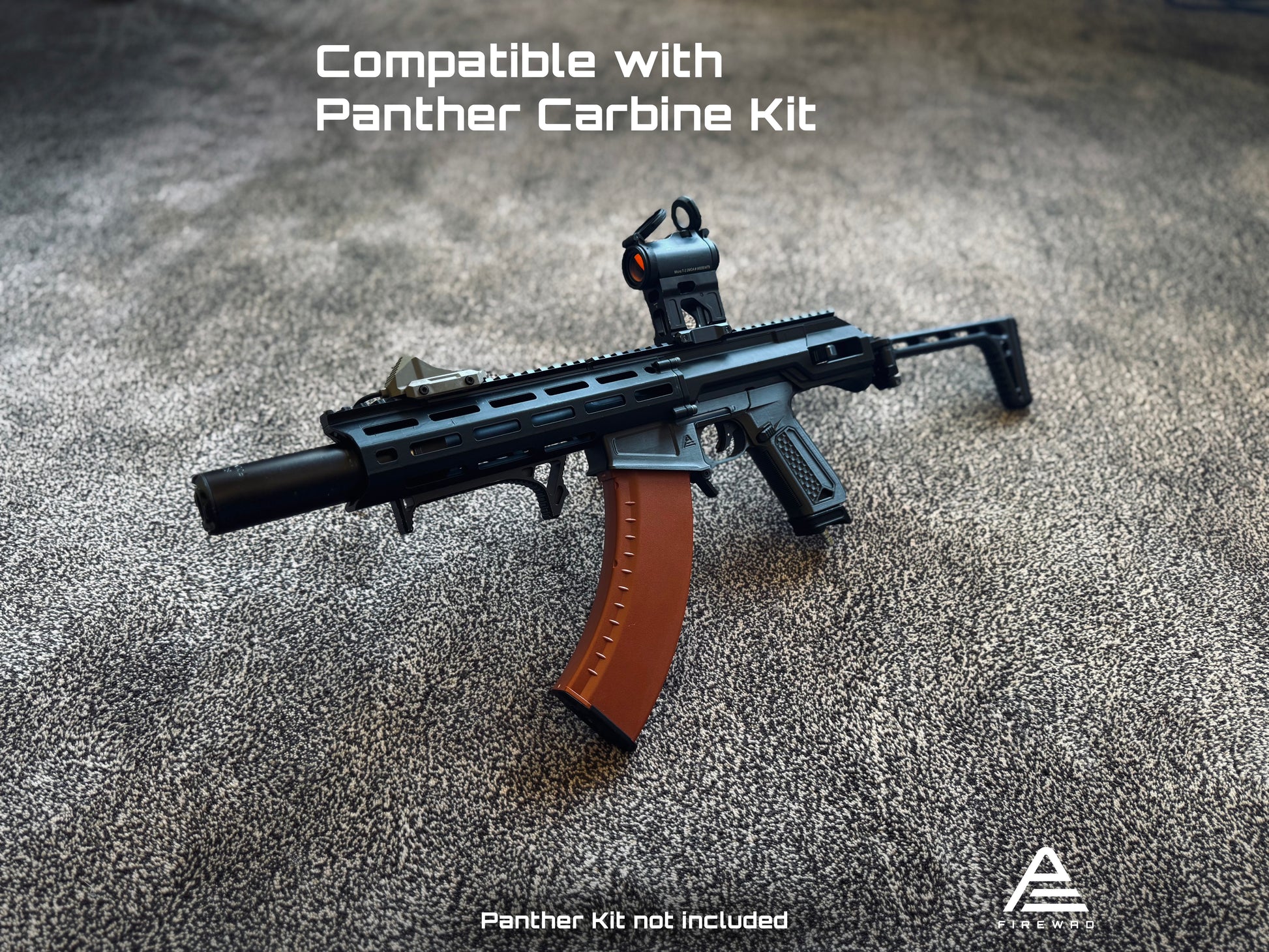

Q: Is this compatible with the Panther kit?
A: Yes, it's compatible, just make sure you print the handguard with the M4 cutout.

Q: I'm having trouble assembling! Can you help me?
A: Of course! I always answer questions in my Discord server.

SAFETY DISCLAIMER: Always wear proper face protection when playing airsoft, especially with 3d printed parts! 3d printed parts are more likely to break, so please be careful!

For personal use only. This file is under the Private Use License
